You are running your thermoforming line at full speed. Parts are forming, cutting, and stacking. But at the end of the shift, you look at the scrap bin — edge trim, rejected parts, skeleton web — and wonder how much of your material budget ended up there.
In thermoforming, material waste is one of the largest cost drivers. The skeleton trim left after parts are punched out can represent anywhere from 20 to 50 percent of the total sheet input, depending on part geometry and nesting efficiency. A line with advanced servo control and optimized mold design can keep scrap below 5%, while older pneumatic lines may run at 10–15% scrap — dramatically affecting material cost per part. The difference adds up quickly across millions of cycles.
This guide offers five practical strategies to reduce scrap on your thermoforming line. Each approach focuses on a specific stage of the process — from sheet design to machine settings to material recovery — so you can identify where your biggest opportunities lie.
The most effective way to reduce scrap starts before the first part is formed: how efficiently are parts arranged on the sheet?
The problem: In a typical thermoforming line, the skeleton trim left after parts are punched out represents a significant portion of total sheet input. Poor nesting — leaving large gaps between parts — increases the percentage of sheet that becomes waste.
The solution: Work with your mold designer to optimize part layout for the available forming area. Larger forming plate sizes (e.g., 780x540mm or 780x650mm) allow for more cavities per cycle, which improves material utilization when properly nested.
Practical steps:
Minimize the distance between cavities without compromising part quality
Consider part orientation — rotating parts can sometimes improve nesting density
Use simulation tools to test different layouts before committing to tooling
What this means for your scrap rate: Better nesting directly reduces the percentage of sheet that becomes skeleton waste. For example, improving nesting efficiency from 60% to 75% can reduce material waste by 20% without changing any other process parameter.
To see how different forming area options affect cavity count and material utilization, review the plastic cup making machine configurations overview.
Temperature variation is one of the most common causes of rejected parts. If the sheet is not heated evenly, some areas will form correctly while others develop wrinkles, thinning, or incomplete fills.
The problem: Heating accounts for approximately 80% of the total energy demand for thermoforming. Temperature deviations can result in undesired wrinkles and thickness variations. Parts from edge cavities often measure differently from those in the center — a sign of uneven heating.
The solution: Machines with independent temperature control zones allow finer adjustment across the sheet width. A thermoforming machine with zone-based heating can compensate for heat loss at the edges, maintaining consistent temperature across the entire forming area.
Key features to look for:
Independent temperature control for different heating zones
PLC control with touch screen for precise setting and monitoring
Recipe storage for different materials and sheet thicknesses
What this means for your scrap rate: Consistent temperature means consistent part quality. When the sheet is heated uniformly, cavity-to-cavity variation decreases, and reject rates drop. For deep-draw products, temperature control is especially critical — running too fast with inadequate heating can cause incomplete molding.
Products of different raw materials and geometric shapes require different heating parameters during thermoforming. If you need equipment for application-specific customized production, explore the full lineup of Sinoplast plastic cup making machine series.
Inconsistent machine movements — uneven feeding, imprecise mold closing, variable cutting pressure — introduce variability that leads to rejects. Servo motors offer a solution.
The problem: Older pneumatic or cam-driven machines rely on mechanical linkages that drift over time. Feeding may become irregular, mold alignment may shift, and cutting pressure may vary — all of which increase scrap.

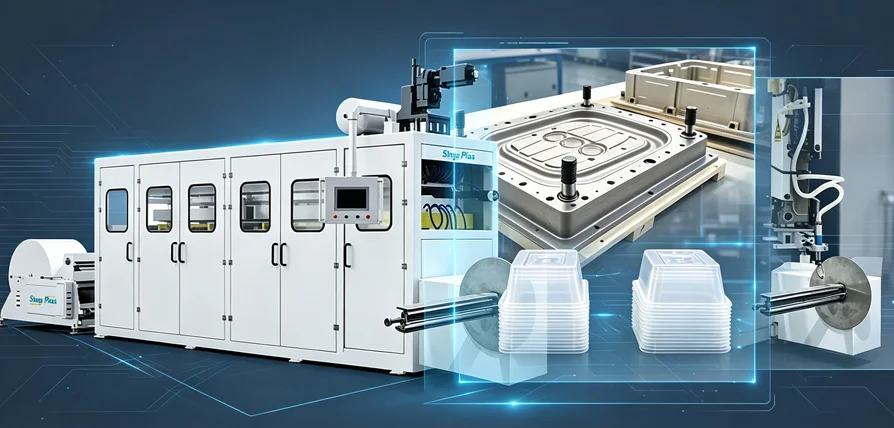

The solution: Modern thermoforming machines use servo motors to control key stations — feeding, stretching, lower mold movement, punching, cutting, and stacking. Servo motors provide precise position and speed control, reducing noise and improving accuracy.
What this means for your scrap rate: When every cycle is consistent, you can run closer to the process limits without risking rejects. As one industry source notes, "when forming inputs are consistent cycle to cycle, you can shorten dwell times safely because the variability that made the longer dwell necessary has been removed". This means faster cycles, lower energy consumption, and fewer rejects — all from improved consistency.
Key servo-controlled operations that affect scrap:
Sheet feeding: Precise feeding length means consistent material between cycles
Stretching: Servo-controlled stretching reduces stretch marks and improves wall distribution
Cutting: Consistent cutting pressure means clean edges without tearing or incomplete separation
Even the best machine will produce scrap if it is not properly maintained. Regular maintenance prevents the gradual drift that turns acceptable parts into rejects.
The problem: Over time, heating elements degrade, mechanical components wear, and sensors lose calibration. These changes are often too small to notice immediately but accumulate into significant quality issues.
The solution: Implement a preventive maintenance schedule that addresses the components most critical to part quality:
| Component | Maintenance Task | Impact on Scrap |
|---|---|---|
| Heating elements | Check for hot/cold spots; replace degraded elements | Prevents uneven heating and incomplete forming |
| Mold surfaces | Clean and inspect for wear | Prevents surface defects and sticking |
| Cutting tools | Sharpen or replace as needed | Prevents tearing and incomplete cuts |
| Servo motors | Check alignment and calibration | Maintains positioning accuracy |
| Cooling system | Clean chiller and check coolant levels | Prevents overheating and warping |
Practical tip: Machines with PLC control and touch screen interfaces make it easier to monitor performance over time. Track key parameters — cycle time, temperature readings, reject counts — to identify trends before they become problems.
What this means for your scrap rate: A well-maintained line produces consistent quality shift after shift. According to industry guidelines, regrinders and blowers should be linked to the thermoformer operation so that they stop operating when the thermoformer is not producing — this prevents unnecessary material processing and ensures scrap is handled efficiently.
Not all scrap needs to be waste. Edge trim, skeleton web, and even some rejected parts can be reground and reintroduced into the extrusion process — turning a cost center into a material source.
The problem: In many thermoforming operations, scrap is treated as waste to be disposed of, rather than a resource to be recovered.
The solution: Implement a closed-loop scrap recovery system:
Step 1 — Separate scrap by material type. PP, PS, and PET have different processing requirements and cannot be mixed for regrind.
Step 2 — Regrind edge trim and skeleton web. The regrind can be reintroduced into the sheet extrusion line at controlled ratios — typically 20–30% for food packaging applications.
Step 3 — Inspect and sort rejected parts. Some rejects are suitable for regrind; others (contaminated or degraded) should be separated.
Step 4 — Calibrate the extruder for regrind content. A PP/PS sheet extruder with an independent temperature control system and optimized screw design can handle regrind effectively while maintaining sheet quality.
What this means for your scrap rate: Instead of paying to dispose of scrap and paying for virgin material, you recover value from both streams. The sheet extruder's screw optimization design ensures good plasticization and mixing effect even with regrind content, and the JC-Time die head and screen changer help prevent material leakage during production.
Use this five-step framework to evaluate and improve your scrap rate:
Track total sheet input vs finished part output
Separate scrap types: edge trim, rejects, setup waste
Establish a baseline to measure improvement
Review part layout and cavity spacing
Consider larger forming areas for higher cavity counts
Use simulation to test different layouts
Verify zone heating is functioning correctly
Use recipe storage for different materials and thicknesses
Monitor edge-to-center temperature variation
Ensure servo motors are calibrated and functioning
Use consistent cycle parameters
Reduce variability through automation
Separate scrap by material type
Regrind and reintroduce at controlled ratios
Monitor regrind impact on sheet quality
You now have five practical strategies to reduce scrap on your thermoforming line:
Optimize sheet and mold design for better nesting efficiency
Control temperature uniformly across the sheet to reduce rejects
Leverage servo-driven precision for consistent cycles
Maintain equipment regularly to prevent performance drift
Reclaim and reincorporate scrap through regrind integration
The key is to address scrap at every stage — from design through production to recovery. Each strategy targets a different source of waste, and together they can significantly improve material utilization.
Once you have assessed your current scrap rate and identified the biggest opportunities, comparing specific machine features — forming area options, servo configurations, temperature control systems — becomes the logical next step for selecting equipment that supports your scrap reduction goals.
