The fully automatic thermoforming machine is indispensable equipment for producing disposable plastic products, including egg trays, lunch boxes, and plates. The SPF-780E thermoforming machine can achieve a maximum speed of 45 cycles per minute, providing efficient and reliable performance. Its molding area measures 780 × 540 millimeters and is equipped with three workstations for molding, cutting, and stacking.
Model | SPF-780E |
Max. Forming Area | 780*540MM |
Max. Forming Depth | 105MM |
Station Number | 3 |
Running Speed | 35-40Cycles/min |
The fully automatic thermoforming machine is indispensable equipment for producing disposable plastic products, including egg trays, lunch boxes, and plates. The SPF-780E thermoforming machine can achieve a maximum speed of 45 cycles per minute, providing efficient and reliable performance. Its molding area measures 780 × 540 millimeters and is equipped with three workstations for molding, cutting, and stacking.

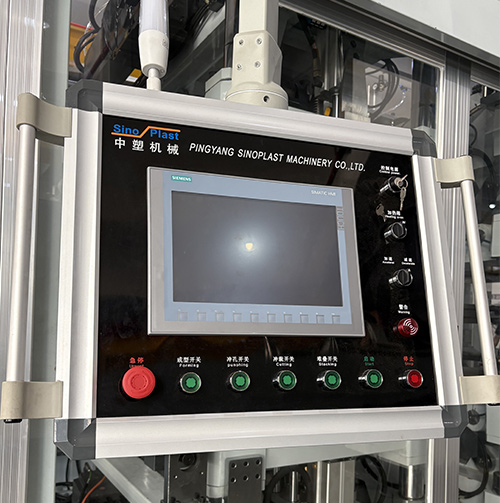

Our thermoforming machine features a structure driven by built-in eccentric wheels and bending arms, designed to accelerate production speed and enhance equipment quality. The entire machine utilizes servo motor control, which improves product accuracy while offering greater programmability. For instance, operators can easily adjust the operating speed and the eccentric wheels stop position of each workstation directly from the touch screen.
A good thermoforming machine also requires a more convenient way to change molds. When changing molds with our equipment, you only need to place the mold on the mold table, push it in, and press the lock button to complete the process. You no longer need to manually align the upper and lower molds, which greatly reduces the difficulty for customers to replace them.
If your factory still has a sheet extruder, you can choose to purchase an online crusher. During production, the waste generated by the hot forming machine can be directly connected to it and crushed. After crushing, you can mix it with new PP or PET particles and pour it into a plastic sheet extruder for re production. You don't have to worry about how to dispose of the waste after production.
Model |
SPM-780E |
SPM-780D |
SPB-780E |
SPB-780D |
Station Number |
3 |
4 |
3 |
4 |
Max.Forming Area |
780*540MM |
780*650MM |
||
Max.Forming Depth |
105MM(Can be customized) |
|||
Suitable Material |
PP/PS/PET |
|||
Sheet Width |
550-820MM |
|||
Material Thickness Range |
0.15-2MM |
|||
Max. Sheet Roll Dia. |
1200MM |
|||
Running Speed |
35-40Cycles/min |
|||
Forming Station Power |
Servo Motor 7 KW*2 pcs |
|||
Forming station stretching |
Servo Motor 3.5 KW |
|||
Hole Punching Station Power |
NONE |
Servo Motor 14 KW |
NONE |
Servo Motor 14 KW |
Cutting Station Power |
Servo Motor 7 KW*2 pcs |
|||
Stacking Station Power |
Servo Motor 3.5 KW |
|||
Sheet Feeding Method |
Servo Motor 3.5 KW |
|||
Air Consumption/Air Pressure |
3m3/min,0.6-0.8Mpa
|
|||
Power Voltage |
380V,50Hz 3P |
|||
Approx. Machine Weight |
17T |
21T |
17.5T |
21.5T |
1.Adopting a double roll feeding design
2.Max. roll diameter: 1200mm
3.Roller lifting function - cylinder
4.Can achieve non-stop machine roll changing
Adopting 3.5kw Siemens servo motor control
Sheet edge heater at the feeding point
Automatic chain oiling and lubrication
Water cooled, aluminum chain track
Adopt electric control of track distance

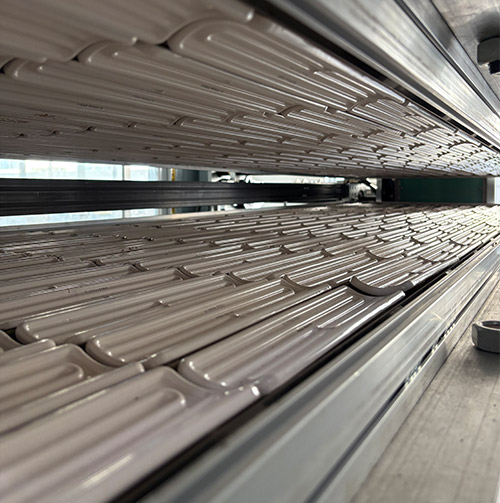

Upper heating power:81.15KW
Lower heating power:81.15KW
Top 13*10, bottom 13*10 (ELSTEIN HEATING ELEMENT)
Maximum forming depth:140mm

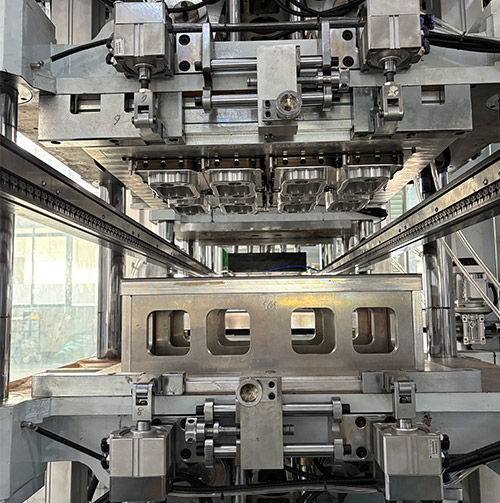

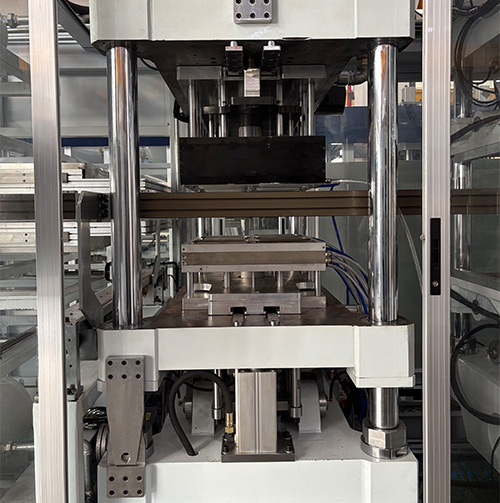

Four pillar support
Maximum forming layout: 780 * 650mm
Maximum stroke: 160mm
Driven by two servo motors, one above and one below
The forming station is equipped with a 3.5KW servo motor for stretching
Each Knuckle bearing adopts INA brand

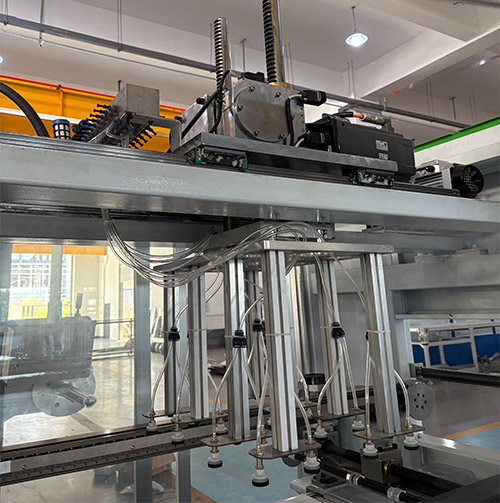

Adopting a downward stacking method and paired with a 3.5KW servo motor
Using imported brand appliances (Siemens, Schneider, Omron, Delta)
Equipped with high-power air conditioning to ensure optimal heat dissipation performance
