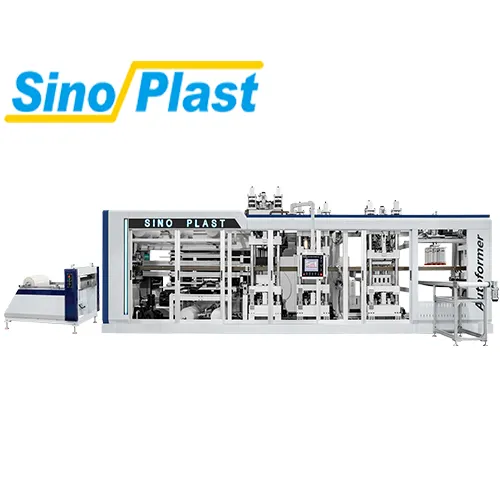

High-speed thermoforming machines are commonly used to manufacture disposable plastic products such as egg trays, fruit packaging boxes, and cold drink cup lids. These machines are equipped with three workstations and feature a maximum molding area of 780 x 540 mm. Under normal production conditions, the equipment can achieve 45 cycles per minute.
Model | SPH-780E |
Max. Forming Area | 780*540MM |
Max. Forming Depth | 105MM |
Station Number | 3 |
Running Speed | 35-40Cycles/min |
High-speed thermoforming machines are commonly used to manufacture disposable plastic products such as egg trays, fruit packaging boxes, and cold drink cup lids. These machines are equipped with three workstations and feature a maximum molding area of 780 x 540 mm. Under normal production conditions, the equipment can achieve 45 cycles per minute.
However, the speed of operation depends on several factors, including the material, thickness, and depth of the sheet. For instance, when producing the same product using PP and PET sheets, PET typically runs faster because PP requires higher temperatures to soften and takes longer to form. If the machine operates at an excessively high speed, it may result in incomplete molding or whitening of the product’s bottom.
In order to improve product accuracy and equipment quality, our equipment has been upgraded to servo motor drive. Each workstation is supported by four pillars to ensure stronger stability of the machine during high-speed operation. Meanwhile, each frame of our thermoforming machine is made of high-strength steel, which enhances the durability of the machine.
In addition to having quality, a machine also needs to be equipped with a user-friendly interface. To help customers better control the equipment, we usually equip them with Siemens brand touch screens. Siemens touch screens, which provide more accurate temperature feedback We have also established separate operating interfaces for each workstation and added automatic production programs. After debugging the mold, our engineers will input the mold's operating parameters into the system. The next time the customer starts the equipment, they simply need to press the one-button start to begin production
Model |
SPM-780E |
SPM-780D |
SPB-780E |
SPB-780D |
Station Number |
3 |
4 |
3 |
4 |
Max.Forming Area |
780*540MM |
780*650MM |
||
Max.Forming Depth |
105MM(Can be customized) |
|||
Suitable Material |
PP/PS/PET |
|||
Sheet Width |
550-820MM |
|||
Material Thickness Range |
0.15-2MM |
|||
Max. Sheet Roll Dia. |
1200MM |
|||
Running Speed |
35-40Cycles/min |
|||
Forming Station Power |
Servo Motor 7 KW*2 pcs |
|||
Forming station stretching |
Servo Motor 3.5 KW |
|||
Hole Punching Station Power |
NONE |
Servo Motor 14 KW |
NONE |
Servo Motor 14 KW |
Cutting Station Power |
Servo Motor 7 KW*2 pcs |
|||
Stacking Station Power |
Servo Motor 3.5 KW |
|||
Sheet Feeding Method |
Servo Motor 3.5 KW |
|||
Air Consumption/Air Pressure |
3m3/min,0.6-0.8Mpa
|
|||
Power Voltage |
380V,50Hz 3P |
|||
Approx. Machine Weight |
17T |
21T |
17.5T |
21.5T |
1.Adopting a double roll feeding design
2.Max. roll diameter: 1200mm
3.Roller lifting function - cylinder
4.Can achieve non-stop machine roll changing
Adopting 3.5kw Siemens servo motor control
Sheet edge heater at the feeding point
Automatic chain oiling and lubrication
Water cooled, aluminum chain track
Adopt electric control of track distance
Upper heating power:81.15KW
Lower heating power:81.15KW
Top 13*10, bottom 13*10 (ELSTEIN HEATING ELEMENT)
Maximum forming depth:140mm
Four pillar support
Maximum forming layout: 780 * 650mm
Maximum stroke: 160mm
Driven by two servo motors, one above and one below
The forming station is equipped with a 3.5KW servo motor for stretching
Each Knuckle bearing adopts INA brand
Adopting a downward stacking method and paired with a 3.5KW servo motor
Using imported brand appliances (Siemens, Schneider, Omron, Delta)
Equipped with high-power air conditioning to ensure optimal heat dissipation performance
