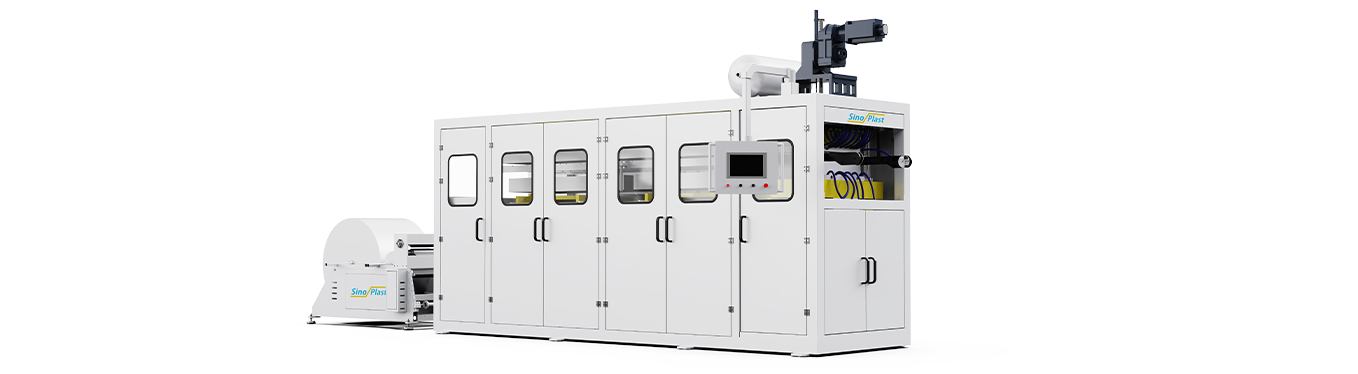

Name: Plastic Cup Machine
Brand: sinoplast
SKU: 00017
Rating: 4.9 (59 reviews)

Application

Video

Features

Main Technical Parameters

Our Markets

Application

Video

Sinoplast Plastic Cup making machine ，760*540MM Forming Layout

Sinoplast thermoforming machine produces disposable PP bowls

Features

Sinoplast Plastic Cup Machine：Efficient, Precise, and Cost-Effective Production

The plastic cup machine produced by Sinoplast is specifically designed for efficient and precise production of plastic cups. By integrating advanced in-mold cutting technology, this machine is equipped with fully automatic stacking and packaging equipment, significantly reducing labor costs and enabling fully automated production. It has become the preferred equipment for manufacturers in the plastic food packaging industry.

Sinoplast Plastic Cup Machine’s main features:

High-Performance Specifications

Maximum forming layout: 780 * 540MM, can accommodate thermoformed products with various diameters and more cavities

Production speed: 15-32 molds/mins, significantly improving production efficiency

Material compatibility: PP, PET, PS

Advanced fully automated technology

Combined with fully automatic stacking and packaging machines, it integrates the entire process from forming to packaging, significantly reducing labor costs.

Energy Efficiency：

Heating element：Using German imported heating elements to reduce electricity costs during production

Conclusion: Transform Your Packaging Process with Sinoplast machine

Sinoplast is a leading global plastic cup machine manufacturer. Our plastic cup machine is not just a device, but also the best solution provided by manufacturers who pursue efficiency, precision, and energy saving.

Main Technical Parameter

Model	SPE-760B	SPE-760D		SPS-760E
Max.Forming Area	760*320MM	760*450MM		760*540MM
Max.Forming Depth	160MM(Can special design)
Example	Cup Top Dia.=75mm,24cavities/mold		Cup Top Dia.=75mm,32-40cavities/mold
Running Speed	15-32cycles/min(according to sheet thickness,material used and product shape )
Sheet Thickness	0.20-2.5MM
Suitable Material	PP/PS/PET
Lower Mold Movement	14.1KW Servomotor			20.4KW Servomotor
Temperature Control Method	Temperature Controller and Temperature Control Module
Air Consumption	1.3-1.6m3/min, 0.6-0.8Mpa
Sheet Feeding Method	4.4KW Servomotor
Plug Stretching Method	5.5KW Servomotor	7.5KW Servomotor
Approx.Weight	8000KG	9000KG		10000KG

Comparision

WHY CHOOSE US?

Our Markets

Canada

Peru

Ecuador

Guyana

Ghana

Saudi Arabia

Egypt

Kenya

Dubai

Sri Lanka

Vietnam

Iraq

Bangladesh

India

Jordan

Nigeria

Pakistan

Recommended Products

Full servo motor Plastic Cup Machine

The SPE-760C Plastic Cup Machine is a cost-effective model that uses cylinder stretching, ordinary motors for sheet feeding, and a 14.1KW servo motor for the lower mold stage. Its operating speed is 15-32 cycles per minute, and of course, the operating speed is also related to the thickness and material of the sheet.

Plastic Cup Thermoforming Machine

The plastic cup thermoforming machine is primarily used for producing disposable plastic cups, trays, lunch boxes, and other plastic products. It can produce a variety of product styles by simply changing the mold. To reduce mold production costs, we can design a single mold to produce cups of different capacities, as long as the cup diameter remains the same.

Thermoforming Cup Machine

The Sinoplast Thermoforming Cup Machine is available in a variety of configurations to suit different production needs. Customers can choose from heating elements from traditional brands or the renowned ELSTEIN (Germany) for superior energy efficiency. The machine is equipped with three servo motors as standard: two Yaskawa motors and one ELESY motor, ensuring smooth and efficient operation. For those with specific brand preferences, we can accommodate special requests.
