Sinoplast Launches Fifth-Gen SPN-780 Thermoformers: 140mm Depth, Pneumatic Clamping, Anti-Fall Sensor & Noise Reduction

Jul 31,2025

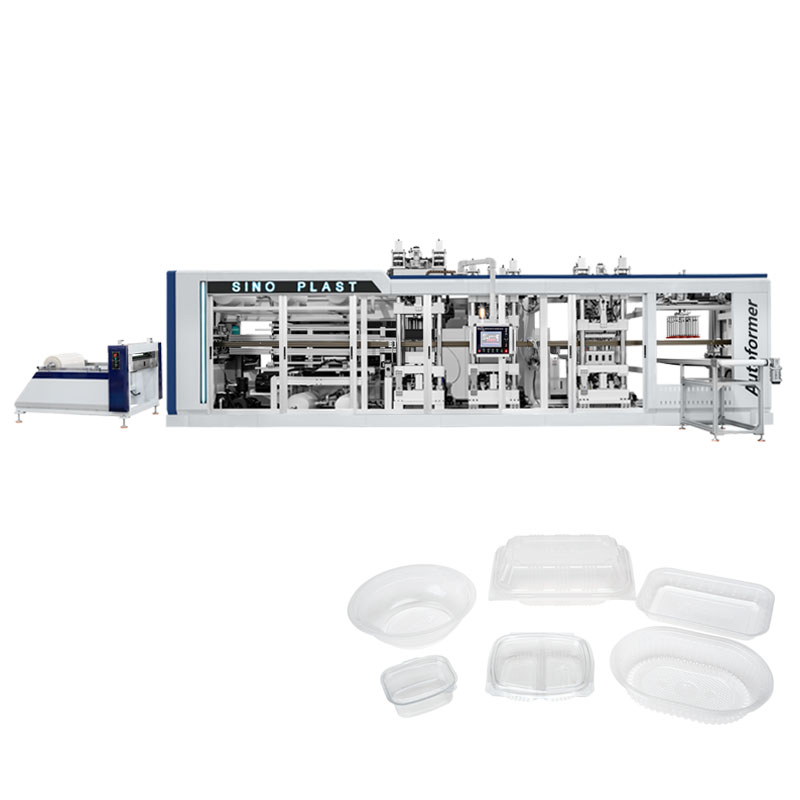

The SPN-780 series represents Sinoplast's latest advancement and the fifth generation of our thermoforming machines. This new generation boasts a redesigned appearance alongside significant functional upgrades, surpassing the capabilities of earlier models.

Enhanced Aesthetics & Usability

Incorporated distinctive Sinoplast logo elements into the machine's design.
Added LED lighting for an improved overall appearance.
Revolutionized Mold Installation: Implemented pneumatic clamping at both the forming and cutting stations. This drastically reduces mold changeover time, especially beneficial for customers utilizing multiple mold sets. Operators simply place the molds on the workstation and use the touchscreen to engage the clamping cylinders.

Superior Forming Capability

Compared to previous generations, the SPN-780 series offers:

Maximum Forming Depth: 140 mm
Maximum Stroke: 160 mm
This provides the ideal solution for customers producing deep-formed products.

Intelligent Safety Feature

Sheet Anti-Fall Sensor: Addresses a common production challenge where inaccurate sheet temperature control can cause overheated sheets to fall into the oven, damaging heating elements. If the sensor detects a sheet fall due to operational error, the Plastic Thermoforming Machine automatically stops and safely pushes the oven out, preventing damage.

Reduced Operational Noise

Improved Air Source Treatment: Installed Festo mufflers at each solenoid valve, effectively reducing the noise generated during machine operation.

SPN-780 Series Technical Specifications

Model	SPN-780E	SPN-780D	SPN-780E	SPN-780D
Station Number	3	4	3	4
Max.Forming Area	780*540MM		780*650MM
Max.Forming Depth	140MM
Suitable Material	PP/PS/PET
Sheet Width	550-820MM
Material Thickness Range	0.15-2MM
Max. Sheet Roll Dia.	1200MM
Running Speed	35-40Cycles/min
Forming Station Power	Servo Motor 7 KW*2 pcs
Forming Stretching	Servo Motor 7 KW
Hole Punching Station Power	NONE	Servo Motor 7 KW*2 pcs	NONE	Servo Motor 7 KW*2 pcs
Cutting Station Power	Servo Motor 7 KW*2 pcs
Stacking Station Power	Servo Motor 3.5 KW
Sheet Feeding Method	Servo Motor 5 KW
Air Consumption/Air Pressure	3m3/min，0.6-0.8Mpa
Power Voltage	380V,50Hz 3P
Approx. Machine Weight	17T	21T	17.5T	21.5T

Ready to Experience the Next Level of Thermoforming?

The SPN-780 Series represents the pinnacle of Sinoplast's innovation, designed to boost your productivity, enhance operator safety, and deliver superior deep-formed products. Don't settle for less than the best.

Contact Sinoplast today for a detailed quote and discover how the fifth-generation SPN-780 can transform your production line!
