What Is a Plastic Thermoforming Machine?

A plastic thermoforming machine is a specialized industrial equipment that transforms plastic sheets into various three-dimensional shapes through a process involving heating, shaping, and cooling. It works by softening plastic sheets with heat, then using vacuum, pressure, or mechanical force to mold the softened material into the desired form, and finally cooling it to set the shape. This machine is widely used in many industries due to its efficiency, versatility, and cost-effectiveness.​

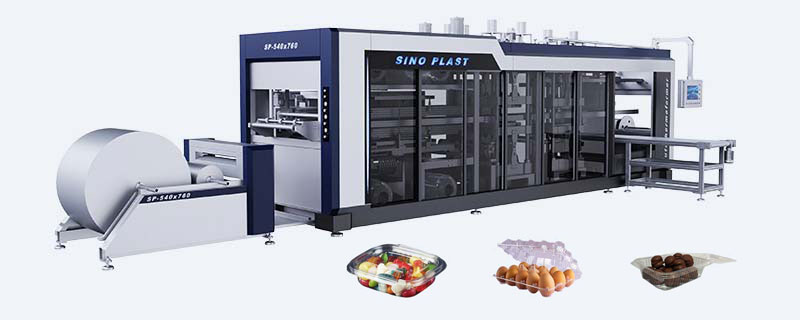

How Does a Plastic Thermoforming Machine Work?​

The working process of a plastic thermoforming machine can be divided into several key steps:​

1.Loading the Plastic Sheet: First, the plastic sheet, such as PET, PVC, or PP sheet, is loaded into the machine.​

2.Heating the Sheet: The heating system, which may consist of infrared heaters or ceramic heaters, heats the sheet to a specific temperature where it becomes pliable. The temperature is crucial here; too low and the sheet won't form properly, too high and the plastic may burn or degrade.​

3.Forming the Sheet: The softened sheet is moved to the forming station. Here, a mold that has the negative of the desired shape is used. Depending on the type of thermoforming, different methods are employed:​

• *Vacuum thermoforming: A vacuum is created between the sheet and the mold, pulling the plastic tightly against the mold's surface.​

• *Pressure thermoforming: Compressed air is used to push the sheet into the mold.​

• *Pressure-vacuum thermoforming: A combination of vacuum and pressure for more complex shapes.​

4.Cooling the Formed Part: After forming, the plastic part is cooled with cold water spray, air cooling, or contact with a cooled mold to retain its new shape.​

5.Trimming: Finally, the formed part is trimmed to remove excess material, resulting in the finished product.​

Types of Plastic Thermoforming Machines​

There are several types of plastic thermoforming machines, each designed for specific applications and production needs:​

1.Vacuum Thermoforming Machine​

The vacuum thermoforming machine is one of the most common types. It relies mainly on vacuum pressure to shape the plastic sheet. It's suitable for producing relatively simple shapes, such as blister packs, food trays, and small containers. This type of machine is popular in small to medium-scale production due to its lower cost and simplicity.​

2.Pressure Thermoforming Machine​

Pressure thermoforming machines use high-pressure air to force the plastic sheet into the mold. They are capable of creating more detailed and complex shapes compared to vacuum thermoforming machines. Products like automotive interior parts, large appliance panels, and industrial enclosures are often made using pressure thermoforming machines.​

3.Twin-Sheet Thermoforming Machine​

Twin-sheet thermoforming machines are used to form two plastic sheets simultaneously and bond them together to create hollow or double-walled products. Items such as fuel tanks, pallets, and large storage containers are typically produced with this type of machine. It offers enhanced strength and insulation properties in the final products.​

4.In-Line Thermoforming Machine​

In-line thermoforming machines are designed for high-volume production. They feature a continuous production line where plastic sheets are fed, heated, formed, cooled, and trimmed in a sequential manner. This type of machine is widely used in industries that require mass production, such as the packaging industry for producing disposable cups, lids, and containers.​

Applications of Plastic Thermoforming Machines​

Plastic thermoforming machines have a wide range of applications across various industries:​

Packaging Industry​

In the packaging industry, these machines are indispensable. They produce:​

1.Blister packs for pharmaceuticals, cosmetics, and small electronics (protecting products and enabling easy display).​

2.Food packaging like trays for meat, fruits, and vegetables, as well as containers for snacks and ready-to-eat meals. The ability to create custom shapes and sizes makes thermoformed packaging ideal for different food items.​

Automotive Industry​

The automotive industry uses plastic thermoforming machines to manufacture various interior and exterior parts:​

1.Interior parts: door panels, dashboard components, seat backs.​

2.Exterior parts: fenders, spoilers, bumper covers (especially for prototype production or low-volume manufacturing).​

Medical Industry​

In the medical field, plastic thermoforming machines are used to make medical trays, cases, and containers. These products need to meet strict hygiene and sterility standards, and thermoforming can produce them with smooth surfaces that are easy to clean and sterilize. Materials like PETG, which is biocompatible, are commonly used in medical thermoforming.​

Consumer Goods Industry​

Many consumer goods are made using plastic thermoforming machines, including toy parts, household storage containers, shower trays, and refrigerator liners. The versatility of the machine allows for the production of both small and large consumer items with different designs.​

Advantages of Using a Plastic Thermoforming Machine​

Using a plastic thermoforming machine offers several advantages over other plastic processing methods like injection molding:​

Cost-Effectiveness​

Thermoforming machines have lower initial investment costs compared to injection molding machines, especially for large-sized products. The molds used in thermoforming are also less expensive to produce, making it a more economical option for small to medium production runs.​

Versatility​

These machines can handle a wide range of plastic materials, including PET, PVC, PP, PS, and ABS. They can also produce products of various sizes and shapes, from small intricate parts to large panels, providing great flexibility in manufacturing.​

Efficiency​

Plastic thermoforming machines have high production speeds, especially in-line models, which can produce a large number of products in a short time. This helps to meet high-volume production demands and reduce production time.​

Material Savings​

Thermoforming uses only the amount of plastic sheet needed for the product, minimizing material waste. In contrast, injection molding often produces more scrap material due to the runners and gates used in the process.​

Key Considerations When Choosing a Plastic Thermoforming Machine​

When selecting a plastic thermoforming machine, consider the following factors to ensure it meets your specific production requirements:​

Production Volume: For high-volume needs, an in-line thermoforming machine is ideal. For small to medium runs, vacuum or pressure thermoforming machines work better.​

Product Size and Complexity: Large and complex products require pressure or twin-sheet thermoforming machines; simple, small products can be handled by basic vacuum machines.​

Plastic Material Type: Ensure compatibility with the plastic sheet (e.g., PET, PVC) as different materials have unique heating and forming characteristics.​

Automation Level: Fully automated machines reduce labor costs and boost efficiency; semi-automated ones are less expensive but need more manual work.​

Energy Efficiency: Look for machines with energy-efficient heating and cooling systems to lower long-term operation costs.​

Maintenance of Plastic Thermoforming Machines​

Proper maintenance ensures long-term performance and reliability:​

Regular Cleaning: Clean heating elements, molds, and conveyor belts to avoid dust, dirt, or plastic residues affecting efficiency and product quality.​

Inspection and Lubrication: Check moving parts (gears, chains, bearings) for wear, replace damaged parts, and lubricate as per manufacturer guidelines.​

Calibration of Heating System: Regularly calibrate to ensure accurate temperature control, preventing poor forming or material waste.​

Mold Maintenance: Clean molds after each run, inspect for damage, and apply mold release agents to extend their life.​

In conclusion

An Automatic plastic thermoforming machine is a vital piece of equipment in the plastic processing industry, offering cost-effective, versatile, and efficient production of various plastic products. By understanding how it works, the different types available, its applications, and the key considerations when choosing and maintaining one, you can make informed decisions to meet your manufacturing needs.
